Bioclimatic Louvered Pergola
Bay Louver
Total control over light, air, and rain.
Engineered aluminum louvers rotate to deliver perfect control over light, air, and rain — creating a four-season outdoor space that adapts to any weather.
Rotating Louvers · Wind Class 5 · Perimeter LED Lighting
How It Works
Engineered for All Seasons

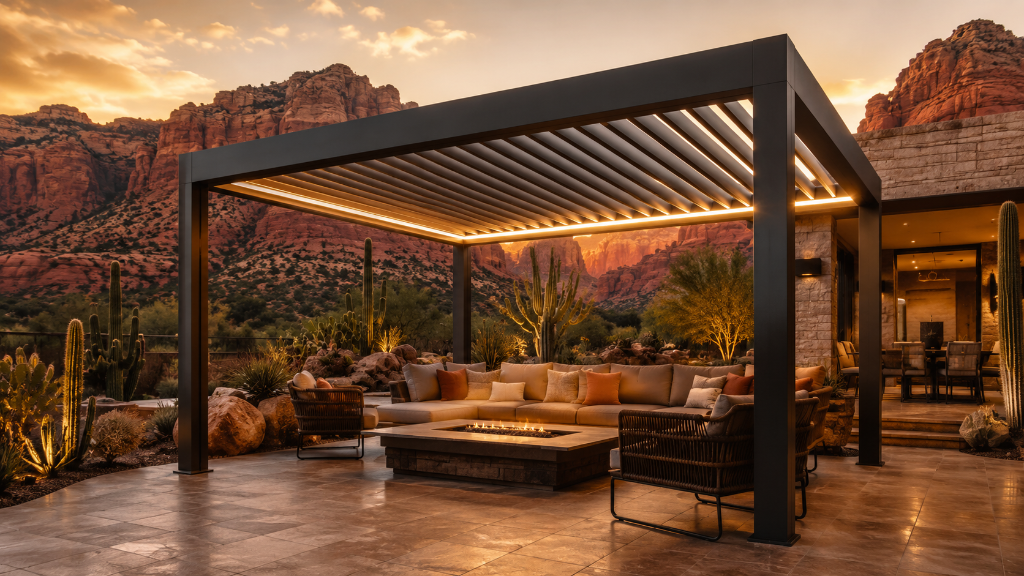

Adjustable Louver System
Aluminum louvers rotate from 0° to 120°, giving you precise control over sunlight and airflow. Louvers close automatically in rain and open for maximum ventilation on warm days.

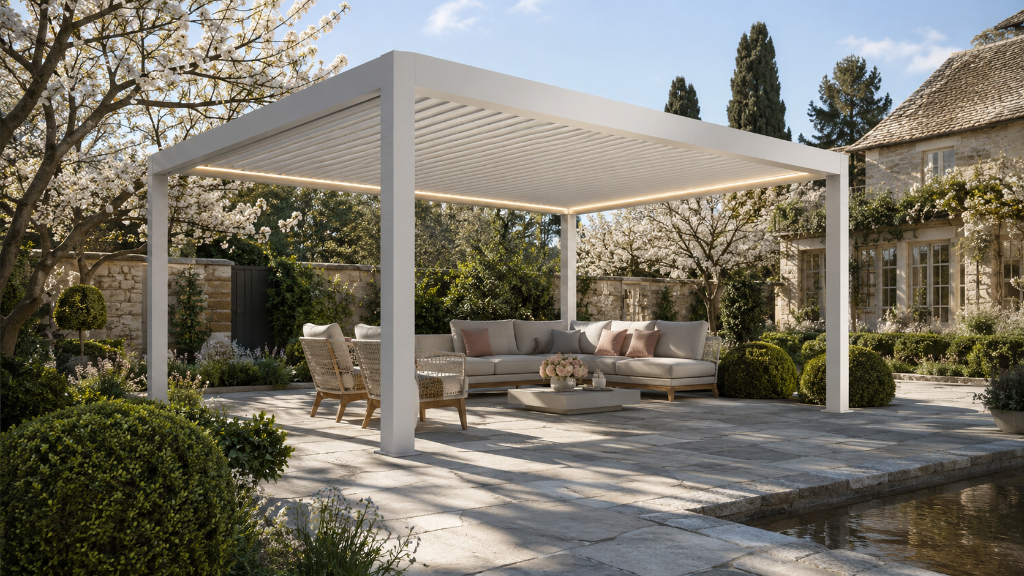

Concealed Tubular Motor
Each louver is driven by a concealed tubular motor for fast (3 rpm), precise operation with complete weather protection. Controllable via remote, app, or smart home integration.

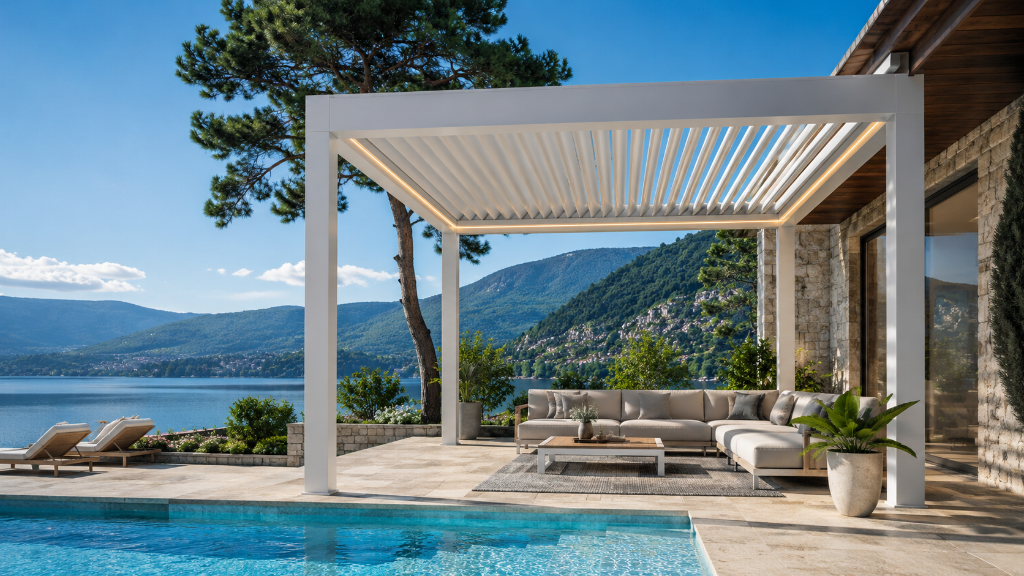

Integrated LED Lighting
Ambient perimeter LED lighting available in Warm (3000K), Daylight (4000K), and Cool (6000K). Supports ON/OFF, dimmer, and full RGB operation for any occasion.

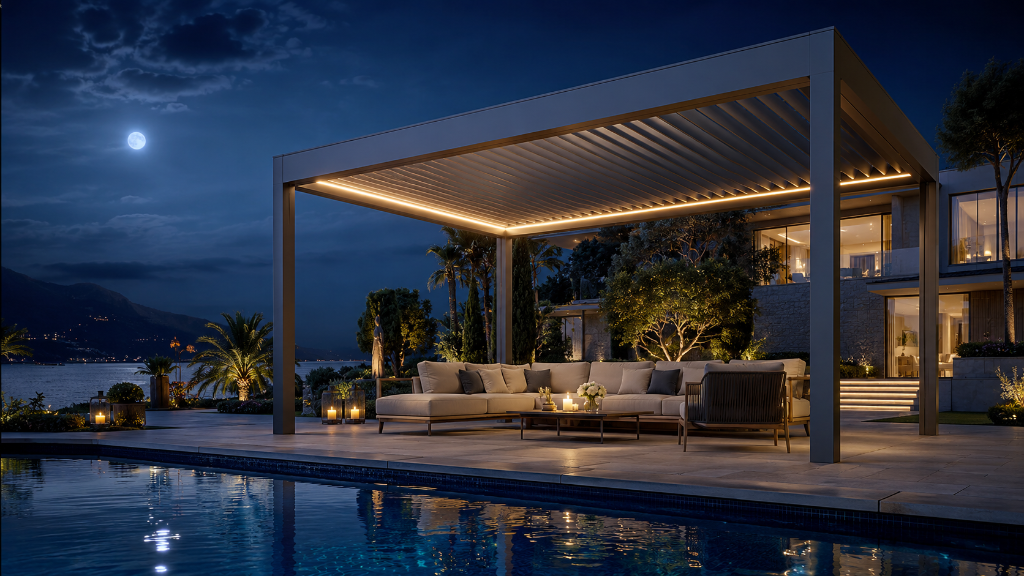

Scalable Design
Spans up to 68 ft in a single unit with columns every 16.4 ft and a built-in perimeter gutter system. Available freestanding or wall-mounted for any installation.
Gallery
See It Installed
Specifications
Technical Details
Available Colors
7 RAL colors at no additional cost
Dimensions
Column spacing: Max every 16.4 ft. Zero-degree inclination for flat roof profile.
Structure Options
Freestanding
Requires 6 × 6 in columns every 16.4 ft. No wall attachment needed.
Wall-Mounted
Uses 4 × 6 in standard columns. Attaches to existing structure.
Modular Expansion
Multiple units can share a common post for seamless large-scale installations.
Built to Last
Materials & Durability
Engineered from the ground up for long-term performance in demanding outdoor environments.
Frame
Louver System
Weather Performance
Motor & Electrical
Performance Ratings
Compare Models
How Does It Stack Up?
| Specification | Chesapeake | Bay Louver Current | Skyline | Clipper | Veranda |
|---|---|---|---|---|---|
| Type | Classic Fabric Pergola | Bioclimatic Louver Pergola | Fully Retractable Pergola | Curved Retractable Pergola | Retractable Cassette Awning |
| Material | Extruded Aluminum Frame + Acrylic Fabric Roof | Extruded Aluminum (Frame & Louvers) | Extruded Aluminum + Retractable Blades | Extruded Aluminum + Curved Fabric Roof | Extruded Aluminum Cassette + Acrylic Fabric |
| Min Width | 6.6 ft | 3.3 ft | 6.6 ft | 6.6 ft | 6.6 ft |
| Max Width | 16.5 ft | Unlimited | 12.8 ft | 29.5 ft | 23 ft |
| Min Projection | 6.6 ft | 2.7 ft | 5.1 ft | 3.3 ft | 5.9 ft |
| Max Projection | 23 ft | 68 ft | 22 ft | 29.5 ft | 9.8 ft |
| Wind Rating | Up to 90 MPH | Wind Class 5 | Wind Class 4 | Up to 90 MPH | Wind Class 2 |
| Waterproof | Yes (retractable) | Yes (0.24 in/h) | Yes (0.3 in/h) | Yes (retractable) | Yes (cassette protected) |
| Motorized | Yes (Somfy®) | Yes (tubular motor) | Yes (Somfy iO) | Yes (Somfy®) | Yes (Somfy®) |
| LED Lighting | Optional | Perimeter LED (3000K–6000K + RGB) | Perimeter LED | Optional | Optional |
| Color Options | 7 RAL Options | 7 RAL Options | 7 RAL Options | 7 RAL Options | 7 RAL Options |
| Certification | ISO 9001 / 14001 / 45001 | ISO 9001 / 14001 / 45001 | ISO 9001 / 14001 / 45001 | ISO 9001 / 14001 / 45001 | ISO 9001 / 14001 / 45001 |
| Details | View | You are here | View | View | View |
