Clipper Curved Retractable Pergola
Clipper
Graceful Design. Timeless Outdoor Living.
A sweeping curved arch transforms your patio into an architectural statement. The Clipper's retractable fabric and integrated drainage system deliver beauty and performance in every season.
Curved Arch · Somfy iO Motor · Spotlight LED Lighting
How It Works
Engineered to Impress

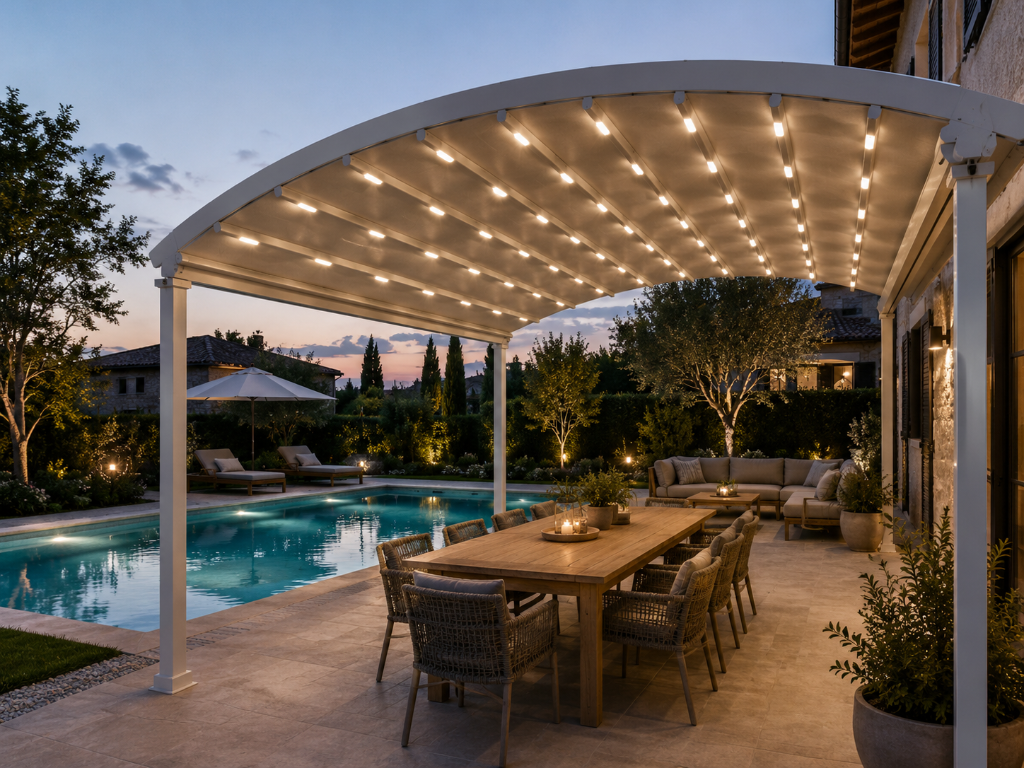

Graceful Curved Architecture
The Ark Pergola's signature arched profile sets it apart from every flat-roof alternative. The pre-manufactured curved arch is available in any custom radius, creating a dramatic silhouette that elevates any outdoor space.

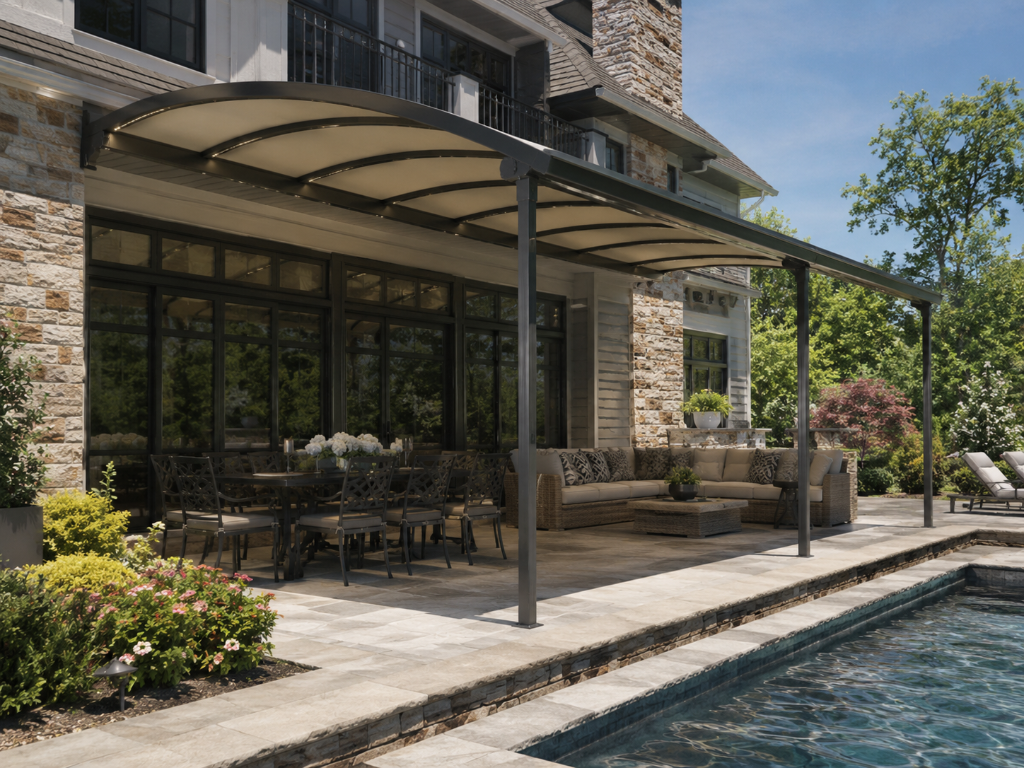

Natural Rain Drainage
The curved arch isn't just beautiful — it's functional. Rainwater naturally follows the arch's contour into front and rear gutters, eliminating pooling entirely. No tilt needed, no workarounds required.

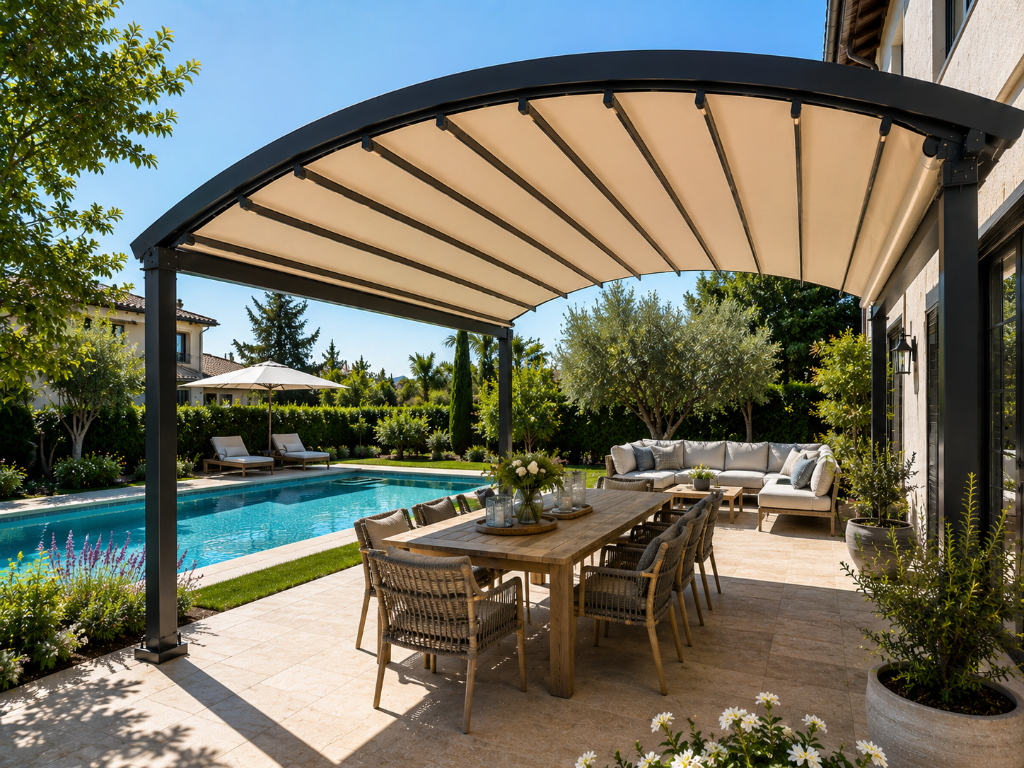

STA & LUX Spotlight Lighting
Spotlights mount to the intermediate beams along the arch for a stunning illuminated canopy effect at night. Choose STA (ON/OFF) or LUX (dimmer + full RGB) in warm (3000K), daylight (4000K), or cool (6000K).

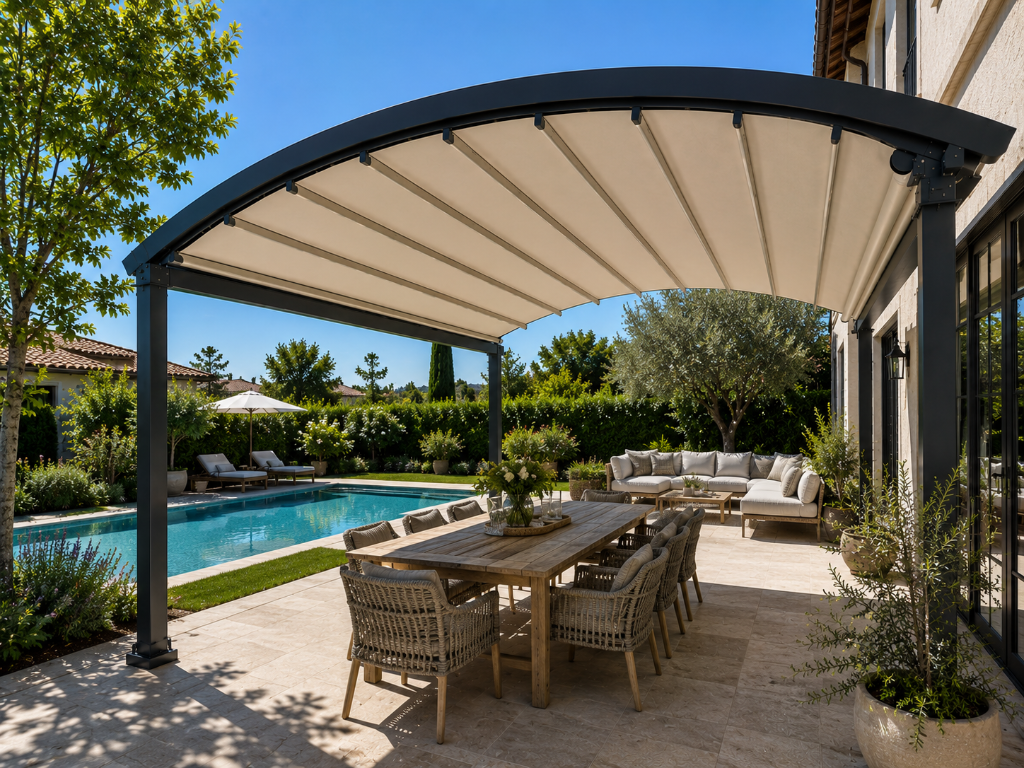

Somfy iO Wireless Motor
The fabric retracts smoothly via a concealed Somfy iO wireless tubular motor with 85 Nm or 120 Nm torque. Control it from your smartphone, a dedicated remote, or your smart home system.
Gallery

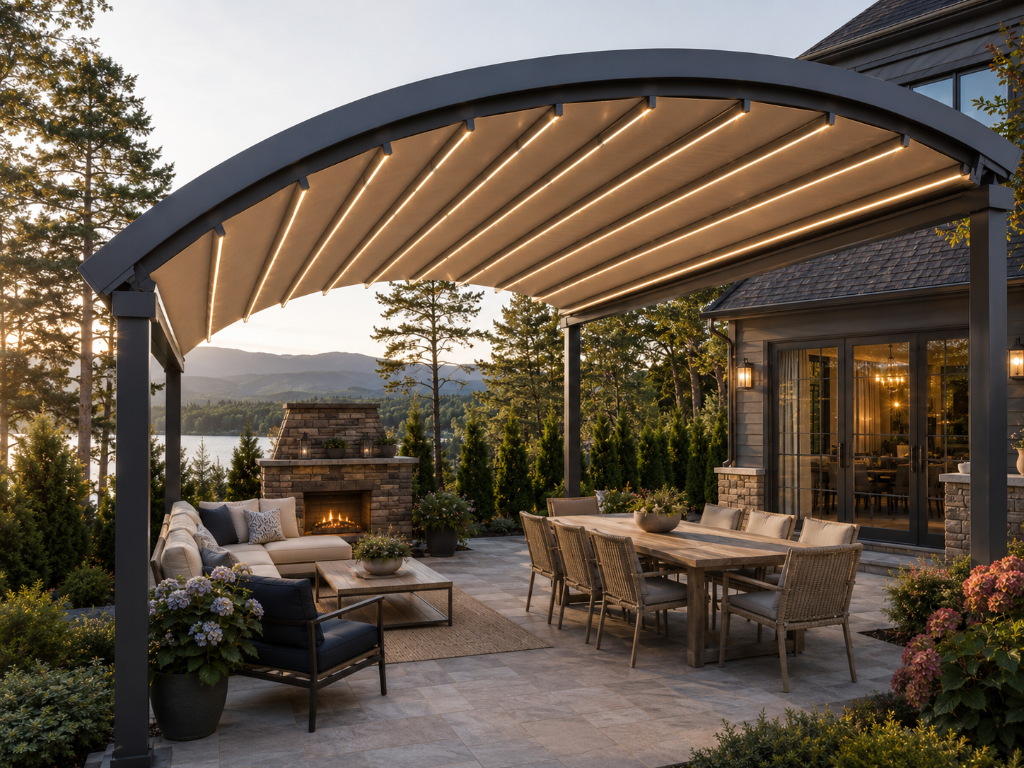

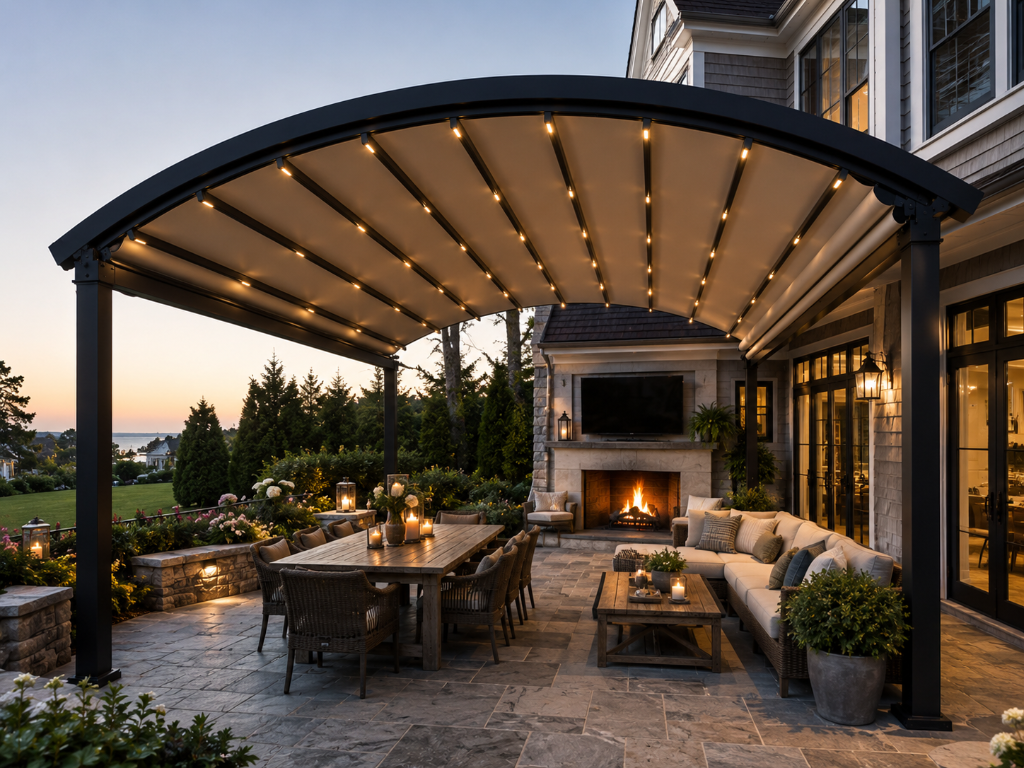

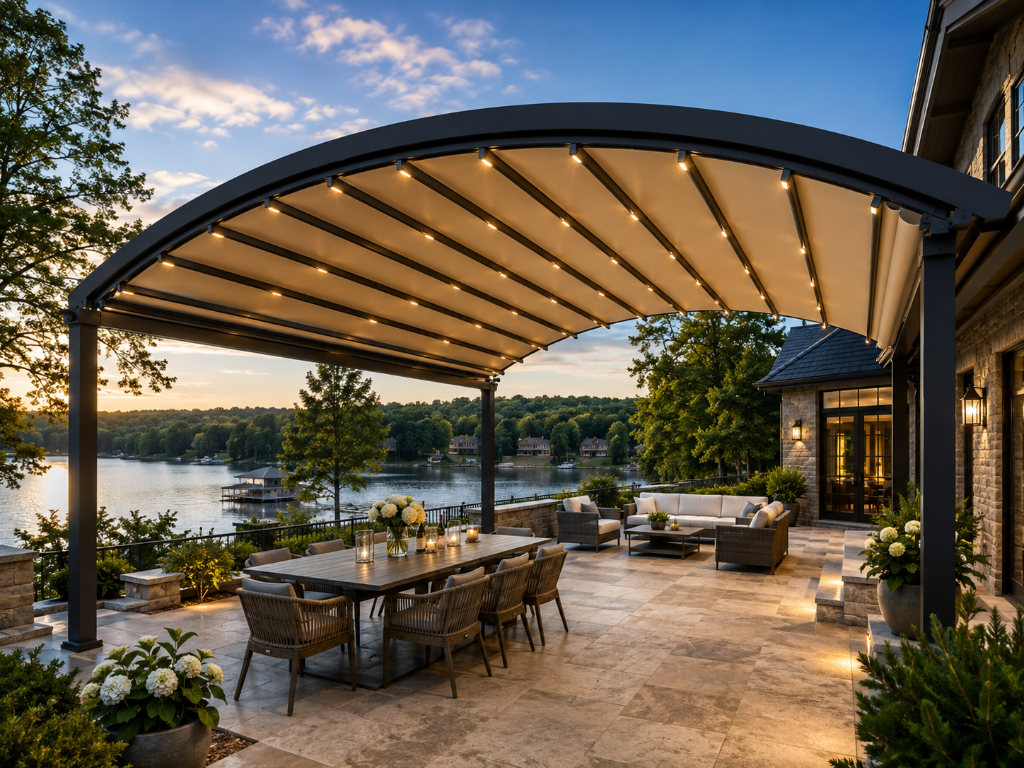

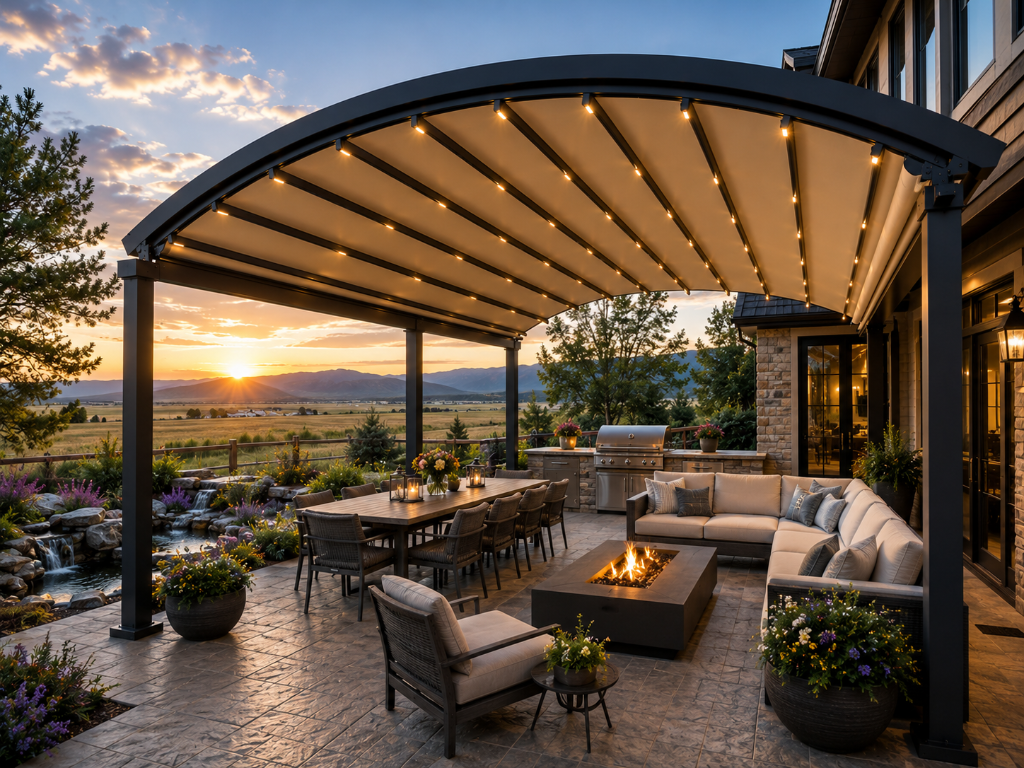

See It Installed
Specifications
Technical Details
Available Colors
All 7 RAL colors included at no additional cost.
Dimensions
Curved arch profile: Pre-manufactured radius with rainwater drainage into front and rear gutters.
Structure Options
Freestanding
Peripheral column support — no wall required. Ideal for open patios, pool decks, and garden settings.
Wall-Mounted
Attaches to an existing wall on one side, with optional inclination for enhanced drainage.
Custom Radius
The curvature radius is pre-manufactured but can be customized to any desired radius upon special request.
Built to Last
Materials & Durability
Engineered from the ground up for long-term performance in demanding outdoor environments.
Frame
Fabric Roof
Weather Performance
Motor & Electrical
Durability Ratings
Compare Models
How Does It Stack Up?
| Specification | Chesapeake | Bay Louver | Skyline | Clipper Current | Veranda |
|---|---|---|---|---|---|
| Type | Classic Fabric Pergola | Bioclimatic Louver Pergola | Fully Retractable Pergola | Curved Retractable Pergola | Retractable Cassette Awning |
| Material | Extruded Aluminum Frame + Acrylic Fabric Roof | Extruded Aluminum (Frame & Louvers) | Extruded Aluminum + Retractable Blades | Extruded Aluminum + Curved Fabric Roof | Extruded Aluminum Cassette + Acrylic Fabric |
| Min Width | 6.6 ft | 3.3 ft | 6.6 ft | 6.6 ft | 6.6 ft |
| Max Width | 16.5 ft | Unlimited | 12.8 ft | 29.5 ft | 23 ft |
| Min Projection | 6.6 ft | 2.7 ft | 5.1 ft | 3.3 ft | 5.9 ft |
| Max Projection | 23 ft | 68 ft | 22 ft | 29.5 ft | 9.8 ft |
| Wind Rating | Up to 90 MPH | Wind Class 5 | Wind Class 4 | Up to 90 MPH | Wind Class 2 |
| Waterproof | Yes (retractable) | Yes (0.24 in/h) | Yes (0.3 in/h) | Yes (retractable) | Yes (cassette protected) |
| Motorized | Yes (Somfy®) | Yes (tubular motor) | Yes (Somfy iO) | Yes (Somfy®) | Yes (Somfy®) |
| LED Lighting | Optional | Perimeter LED (3000K–6000K + RGB) | Perimeter LED | Optional | Optional |
| Color Options | 7 RAL Options | 7 RAL Options | 7 RAL Options | 7 RAL Options | 7 RAL Options |
| Certification | ISO 9001 / 14001 / 45001 | ISO 9001 / 14001 / 45001 | ISO 9001 / 14001 / 45001 | ISO 9001 / 14001 / 45001 | ISO 9001 / 14001 / 45001 |
| Details | View | View | View | You are here | View |
