Vertical Zip Awnings
Zip Screen
Precision in motion.
The ZIP Screen 60 locks fabric into aluminum guides using a patented Swiss spring system, ensuring a perfectly flat, wrinkle-free surface even after years of use and minor structural deformations. Wind Class 2 certified. Ideal for closings on bioclimatic pergolas.
Vertical Awning · ZIP Screen 60 · Bring Elegance to Life
How It Works
Precision Engineering

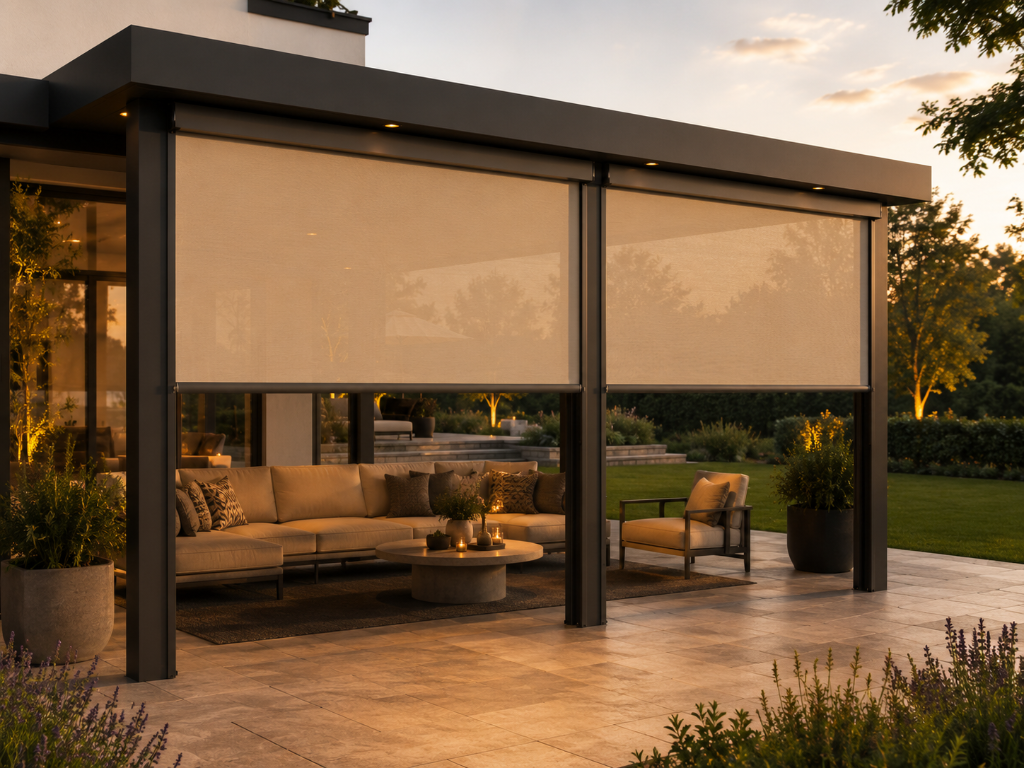

Patented Swiss Spring System
Patented Swiss-made plastic springs inside the aluminum guides keep the fabric under constant, uniform tension — maintaining a perfectly flat surface even after minor deformations (up to 1" / 3cm) caused by weather or wear over time.

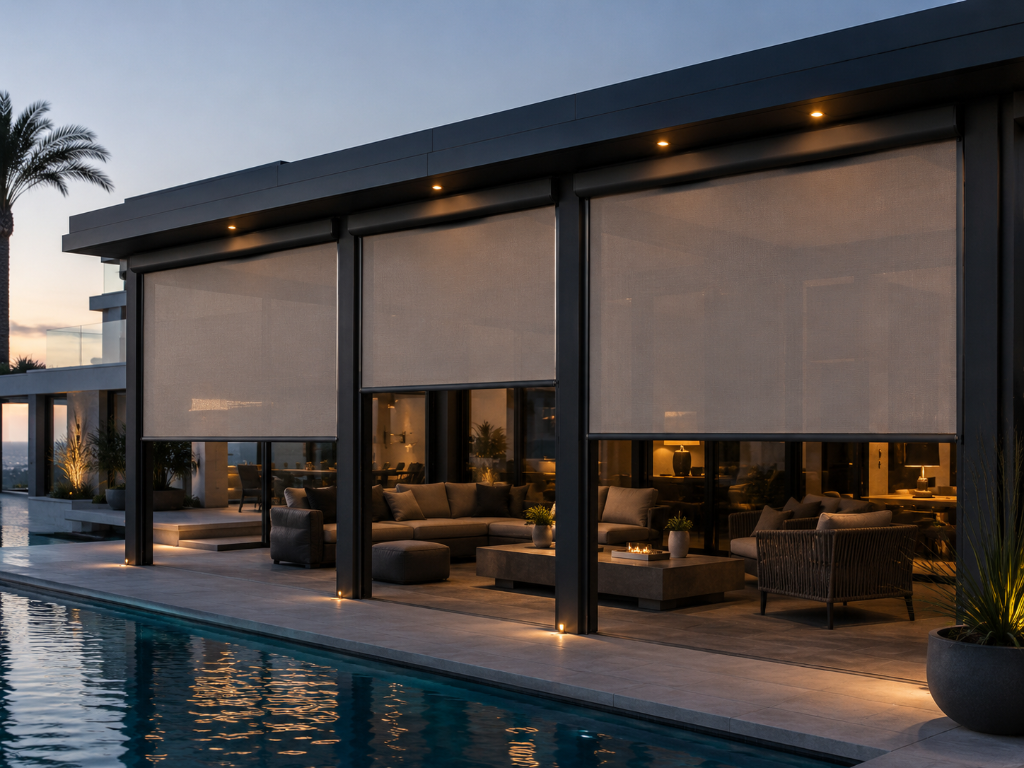

Patented Auto-Lock Mechanism
An innovative smart locking mechanism secures and tensions the fabric in the lower position, ensuring exceptional resistance to wind and improving overall stability — delivering reliable performance in harsh weather conditions.

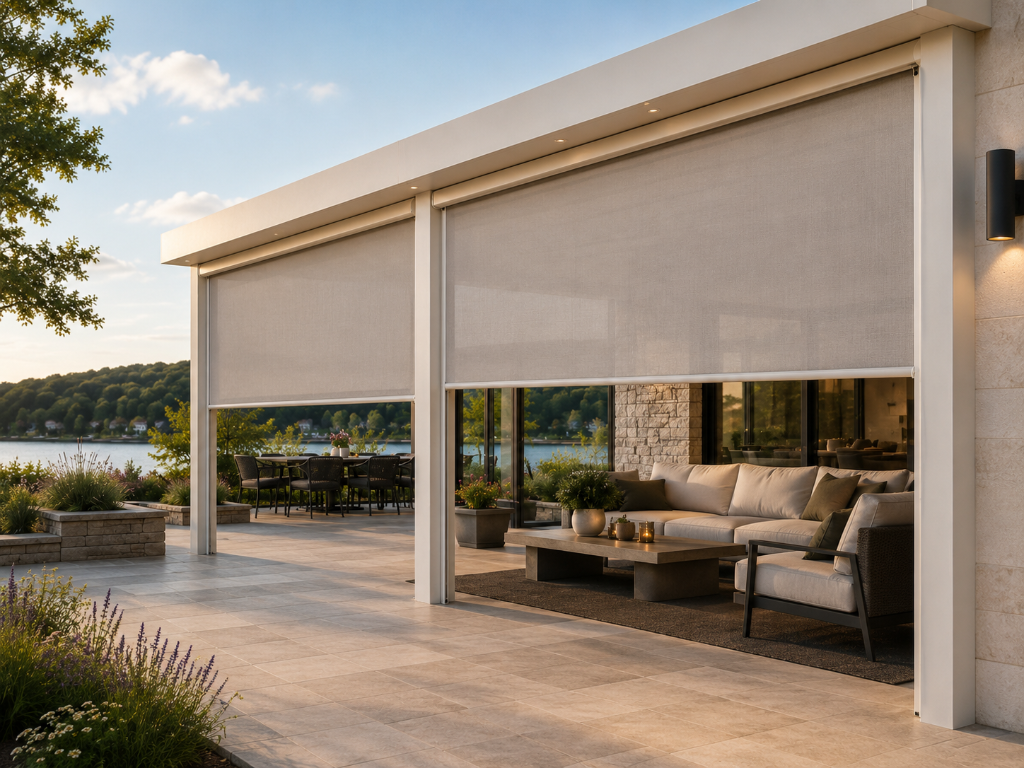

Solar-Powered Option
Enhance your zip system with wireless power supply using a solar energy powered motor. The integrated solar panel charges a high-performance battery that powers your shading system — no wiring, no limits, just clean energy and quiet operation.

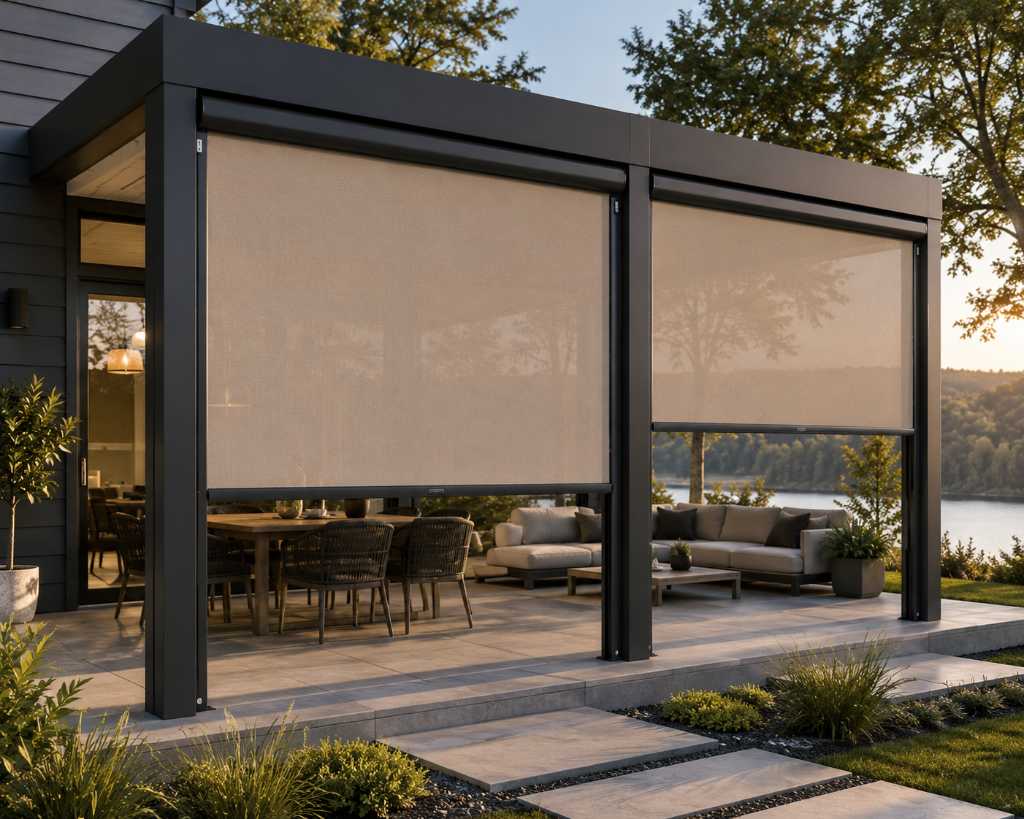

Perfect for Pergolas & Bioclimatic Structures
Zip Screens are a perfect fit for vertical side coverings in awning and bioclimatic pergolas. They integrate seamlessly to create a fully enclosed, weather-protected outdoor room with shading, UV protection, and breathable construction.

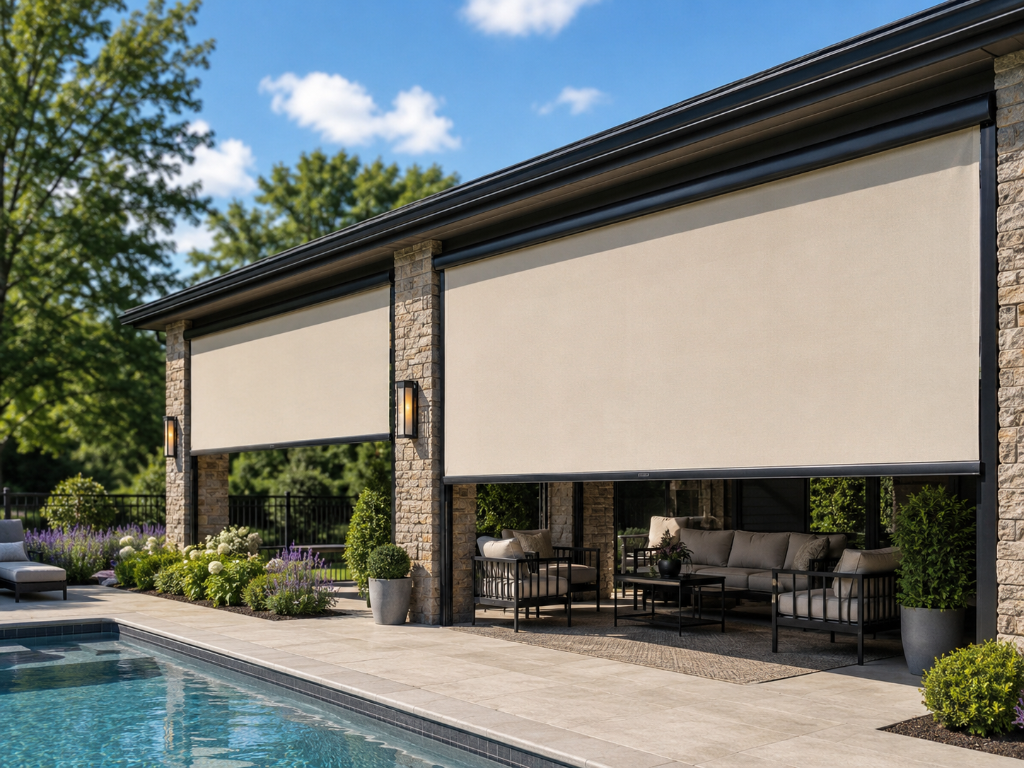

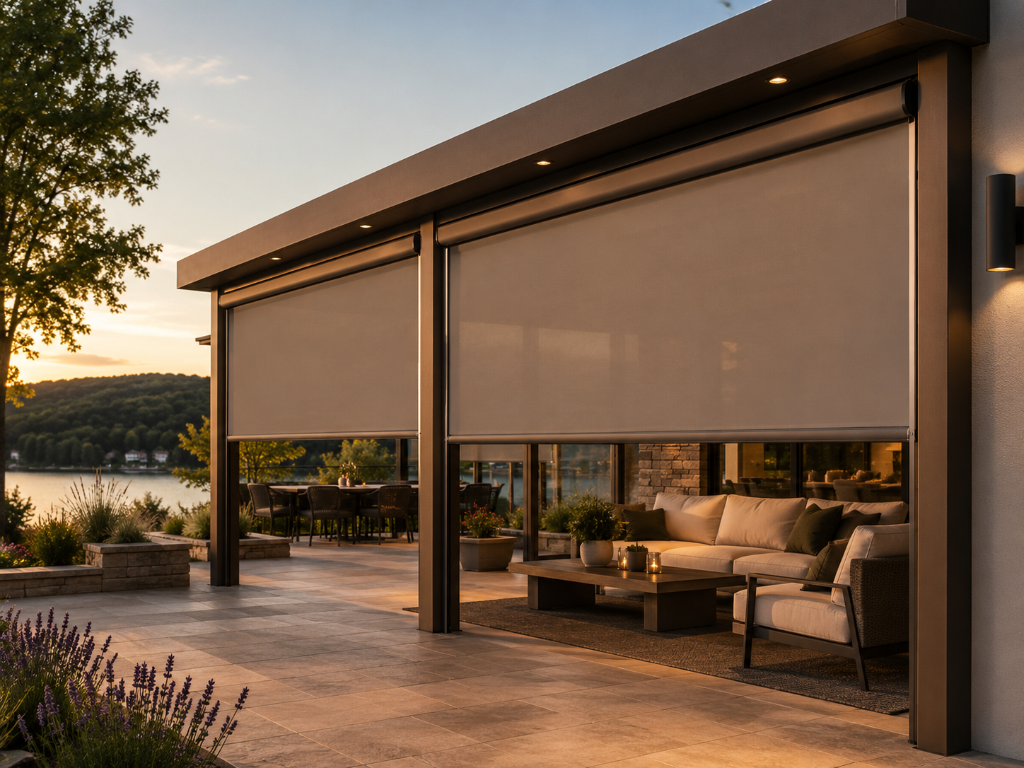

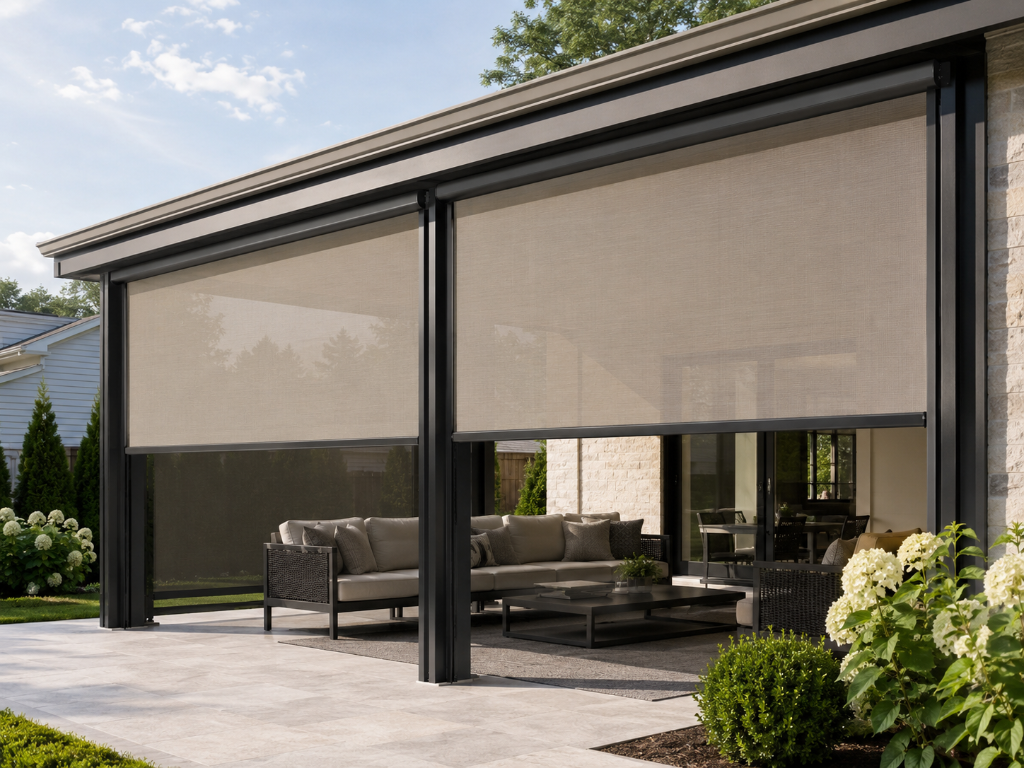

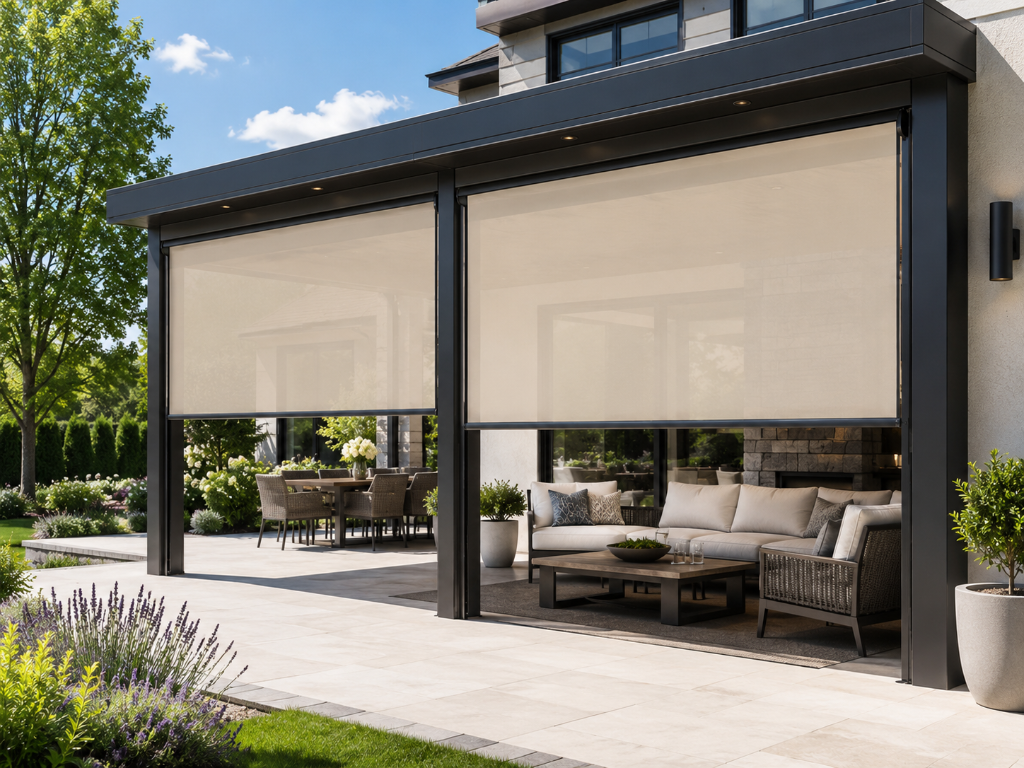

Gallery
See It Installed
Specifications
Built for Every Opening
Every component is selected for long-term performance in real outdoor conditions — from UV exposure to high winds and heavy rain.
ZIP Screen 60
Engineered for expansive areas. Featuring patented Swiss-made plastic springs in its guides, which ensure optimal performance even after minor (up to 3cm) deformations caused by wear and tear or weather conditions. A perfect fit for vertical side coverings in awning and bioclimatic pergolas.
Max Width
13'1" (400 cm)
Max Height
11'6" (350 cm)
Min Width
6'7" (200 cm)
Min Height
5'9" (175 cm)
Electrical or manual operation possible.
What's Included
- Gear Box 1/11
- Square Cassette 4.3×4.3 in (110×110mm)
- Perforated or Acrylic fabric
- White RAL 9016 frame
- 2.4×1.8 in (60×45mm) guide rails
- Elastic spring system
Optional Upgrades
Somfy iO (Wi-Fi) 40Nm + remote control
+$374 / unitOther RAL frame colors
+$250 / unitFabric SOLTIS 96
+$406 / unitKey Features
Patented Auto-Lock Mechanism
Screen systems can be enhanced with an innovative smart locking mechanism. The patented auto-lock system by LAMDA secures and tensions the fabric in the lower position, ensuring exceptional resistance to wind and improving overall stability.
Go Solar
Enhance your zip system with wireless power supply using a solar energy powered motor. The integrated solar panel charges a high-performance battery — no wiring, no limits. Just clean energy, quiet operation, and modern comfort.
Perforated & PVC Fabrics
Imported perforated fabrics allow shading, privacy, and effective ventilation within the protected space. PVC blockout fabric available for complete sun blockout.
Annual Service Mandatory
Annual mandatory service is required to maintain the 5-year guarantee and Wind Class 2 certification.
What's Included
- 100% Recyclable Aluminum Frame
- Patented Swiss-Made Plastic Springs
- Perforated or PVC Blockout Fabric
- Aluminum Counterweight Bar
- Electric or Manual Motor
- ZIP 60mm / ZIP 50mm / BT Drivers
- Polyester Powder Coat (RAL)
- Side Guide Rails
- Auto-Lock Mechanism (optional)
- Solar Motor Option (optional)
Guarantee
5 Years
Certification
ISO 9001 / TÜV Austria
Compare Models
How Does It Stack Up?
| Specification | ZIP Screen 60 |
|---|---|
| Type | Large-Opening Vertical Awning |
| Max Width | 13'1" (400 cm) |
| Max Height | 11'6" (350 cm) |
| Min Width | 2'4" (70 cm) |
| Min Height | 3'3" (100 cm) |
| Operation | Electric or Manual |
| Cassette | SQUARE (4.3 in) / BIG (5.5 in) |
| Driver | ZIP 60mm or BT |
| Swiss Springs | Patented Swiss Springs (included) |
| Fabric | Perforated or PVC Blockout |
| Auto-Lock | Optional |
| Solar Motor | Optional |
| Wind Rating | Wind Class 2 |
| Certification | ISO 9001 / TÜV Austria |
